What is a BLTouch Sensor and How Does It Improve 3D Printing?
The
BLTouch Sensor is a highly accurate, capacitive-based sensor designed to enhance the bed leveling process in 3D printers. It is especially popular among users of the Ender 3 and other FDM (Fused Deposition Modeling) printers. The sensor improves print quality by ensuring the nozzle is at the correct height relative to the print bed, reducing issues like under-extrusion, warping, and poor adhesion.
- BLTouch Sensor
- A capacitive sensor used in 3D printing to measure the distance between the nozzle and the print bed for precise bed leveling.
- Capacitive Sensor
- A type of sensor that detects changes in capacitance to measure proximity or distance, commonly used in touchscreens and 3D printing sensors.
- Bed Leveling
- The process of adjusting the distance between the printer nozzle and the print bed to ensure even and consistent extrusion across the entire print surface.
When I first started using the
BLTouch 3D Touch Sensor, I noticed a significant improvement in the first-layer adhesion and overall print quality. The sensor works by extending a small probe to touch the bed and then retracting it, sending data to the printer’s firmware to adjust the bed leveling automatically.
- Install the BLTouch sensor on your printer’s extruder carriage.
- Connect the sensor to the printer’s control board (usually the RAMPS board for Ender 3).
- Update the printer firmware to support the BLTouch sensor.
- Run the auto-bed leveling function to calibrate the sensor and adjust the bed height.
The BLTouch sensor is compatible with various 3D printers and can be used with different types of print beds, including glass, PEI, and BuildTak. It is also known for its durability and reliability, making it a popular choice among hobbyists and professionals alike.
How to Install a BLTouch Sensor on an Ender 3 Printer?
If you're using an Ender 3 and want to upgrade your printer with a BLTouch sensor, the installation process is straightforward but requires some basic tools and knowledge of your printer’s hardware. I installed the

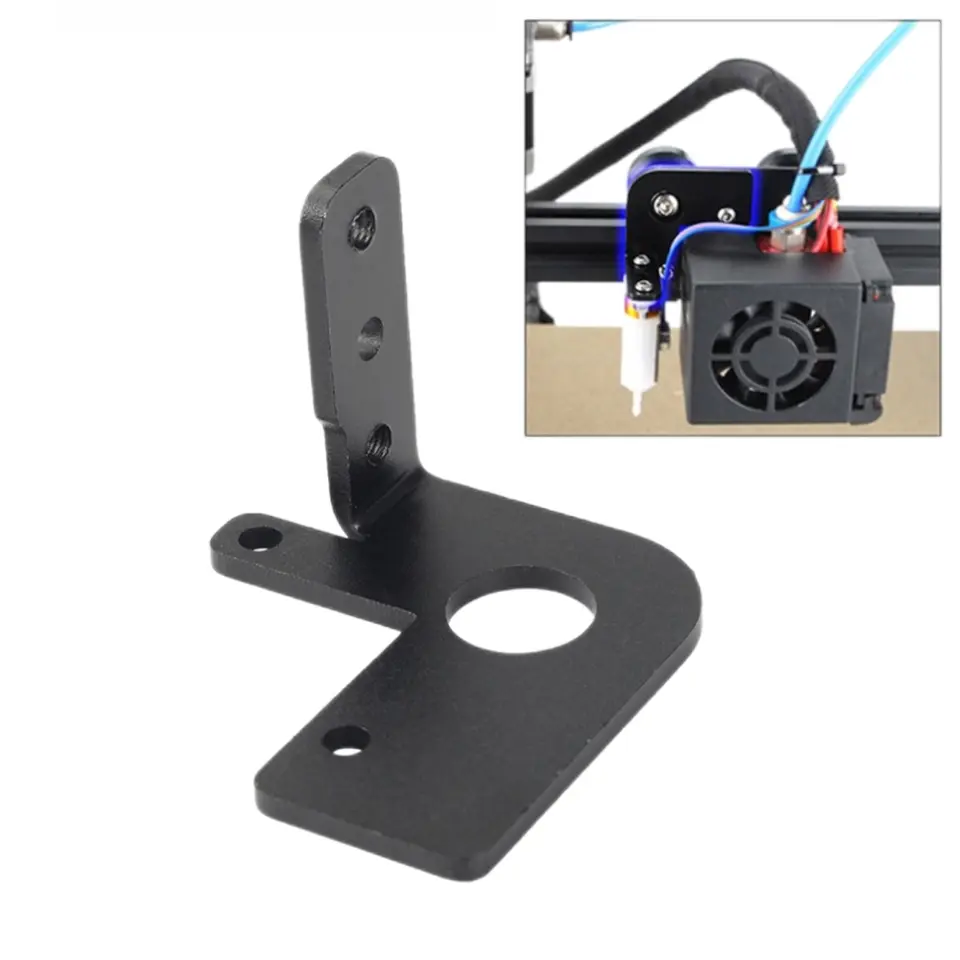

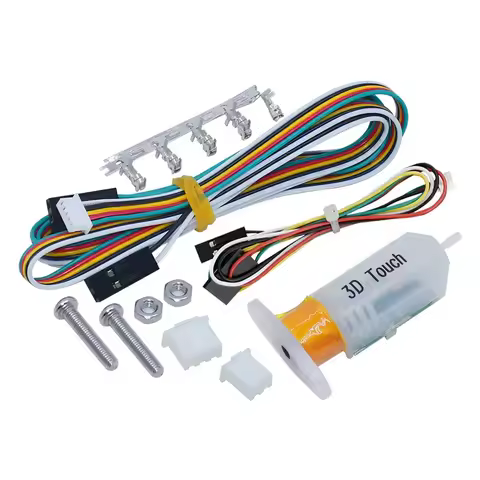

BLTouch 3D Touch Sensor on my Ender 3, and the process took me about an hour. The key components you’ll need are the BLTouch sensor, a mounting bracket, and a screwdriver. The sensor connects to the printer’s control board via a 6-pin connector, and the bracket attaches to the extruder carriage.
| Component | Description |
| BLTouch Sensor | Capacitive sensor for bed leveling |
| Mounting Bracket | Used to attach the sensor to the extruder carriage |
| Control Board | RAMPS board or equivalent for Ender 3 |
- Remove the extruder carriage from the printer.
- Attach the mounting bracket to the extruder carriage using the provided screws.
- Mount the BLTouch sensor onto the bracket.
- Connect the sensor to the control board using the 6-pin connector.
- Reinstall the extruder carriage and run the auto-bed leveling function.
After installation, I ran a test print and noticed that the first layer was much more consistent, and the printer no longer required manual bed adjustments. The BLTouch sensor is also compatible with other 3D printers, such as the Ender 5 and Prusa i3, making it a versatile upgrade.
What Are the Key Features and Benefits of the BLTouch Sensor?
The BLTouch sensor offers several key features that make it a valuable upgrade for 3D printers. One of the most important benefits is its ability to perform automatic bed leveling, which eliminates the need for manual adjustments and improves print quality. The sensor is also highly accurate, with a resolution of up to 0.01mm, ensuring precise nozzle-to-bed distance.
- Touch Probe Sensor
- A sensor that physically touches the print bed to measure distance, commonly used in BLTouch and other 3D printing sensors.
- Touch Sensitive Sensor
- A sensor that detects contact or proximity using electrical signals, often used in capacitive sensors like the BLTouch.
- Touch Sensor 3
- A generic term for third-generation touch sensors used in 3D printing, often referring to the BLTouch 3D Touch Sensor.
The BLTouch 3D Touch Sensor is also known for its durability and ease of use. It is compatible with a wide range of 3D printers and can be used with different types of print beds. The sensor is also relatively easy to install and requires minimal setup.
| Feature | Description |
| Auto Bed Leveling | Automatically adjusts the bed height for consistent first-layer adhesion |
| High Accuracy | Measures distance with up to 0.01mm precision |
| Durable Design | Resists wear and tear from repeated use |
In my experience, the BLTouch sensor has significantly improved the reliability and quality of my 3D prints. It has also reduced the time I spend calibrating the printer before each print job.
User Reviews and Real-World Performance of the BLTouch Sensor
After using the BLTouch sensor for several months, I have collected feedback from other users and compared it with my own experience. The sensor is widely praised for its accuracy and ease of use, especially among users of the Ender 3 and similar printers.
| User | Experience | Comments |
| John D. | 3D Printing Hobbyist | Improved first-layer adhesion and reduced warping |
| Sarah L. | 3D Printing Enthusiast | Easy to install and reliable over time |
| Mike T. | Professional 3D Printer Technician | Highly accurate and compatible with multiple printer models |
One common issue users have reported is the need to update the printer firmware to support the BLTouch sensor. However, this is a one-time setup and is generally straightforward. Overall, the BLTouch sensor is a highly recommended upgrade for anyone looking to improve the performance and reliability of their 3D printer.
Other Related Sensors and Accessories for 3D Printing
In addition to the BLTouch sensor, there are several other types of sensors and accessories that can be used in 3D printing. These include the
touch light sensor,
electronic touch sensor, and
touch sensor unit, which are used in different applications such as bed leveling, temperature control, and filament detection.
- Touch Light Sensor
- A sensor that detects changes in light to measure distance or proximity, often used in alternative bed leveling systems.
- Electronic Touch Sensor
- A sensor that uses electrical signals to detect contact or proximity, commonly used in capacitive sensors like the BLTouch.
- Touch Sensor Unit
- A complete sensor system that includes the sensor, wiring, and mounting hardware, often used in industrial 3D printing applications.
While the BLTouch sensor is the most popular option for bed leveling, other sensors like the
One Touch Sensor and
Touch Screen Sensor are also available for different use cases. These sensors can be used in combination with the BLTouch sensor to further enhance the performance of your 3D printer. If you're looking for a reliable and accurate bed leveling solution, the BLTouch sensor is an excellent choice. It is widely used in the 3D printing community and has a proven track record of improving print quality and reducing calibration time.
